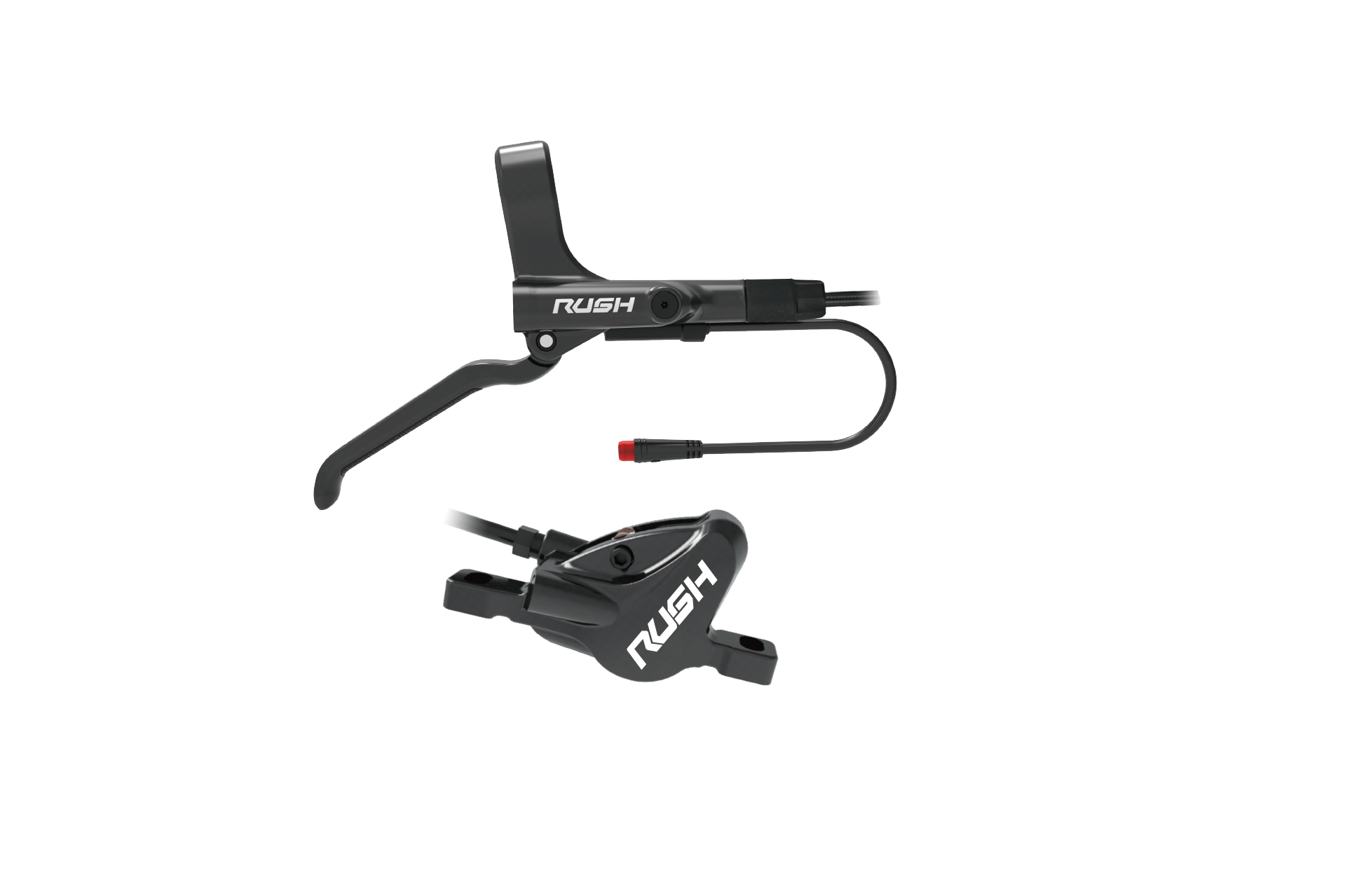

BH-M286-E

Key Features:

Application: Built explicitly for commuter and utility e-bikes.

Safety Feature: Integrated mechanical sensor wires provide instant electronic motor cut-off upon braking.

Caliper & Lever: Low-profile 2-piston aluminum caliper paired with an extended 4-finger lever blade for high-leverage stopping power.

Pads: Highly durable sintered metallic pads designed to resist fade under heavy vehicle loads.

Lightweight: Front assembly: ~315g | Rear assembly: ~336g.

Specifications:

System
• Open System
• One way bleeding
• One integrated pump, clean look
• With power cut-off design for E-Bike

Rotor
• Center Lock: RT900 (Thickness=1.8mm)
• 6-Bolt type: RT553 (Thickness=1.8mm)
• 6-Bolt type:T23-180 (Thickness=2.3mm)

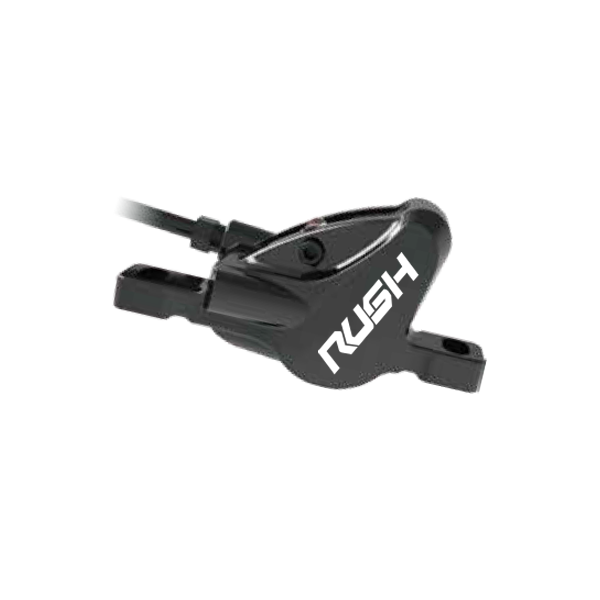

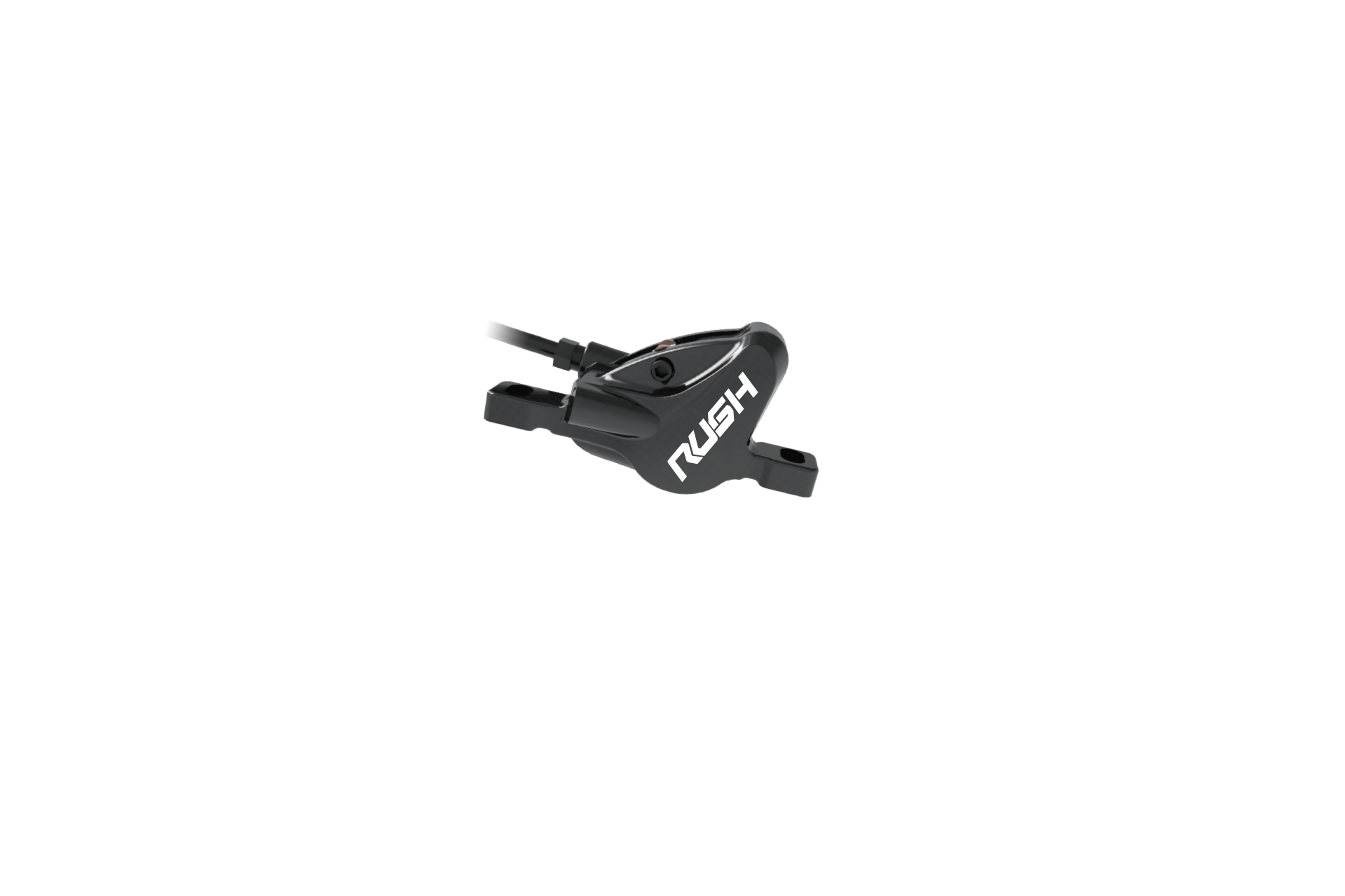

Caliper
• 2 Pistons
• Cold forged
• Small profile
• Black available

Pads
• Sintering Pads
• Compatible with Shimano Pads

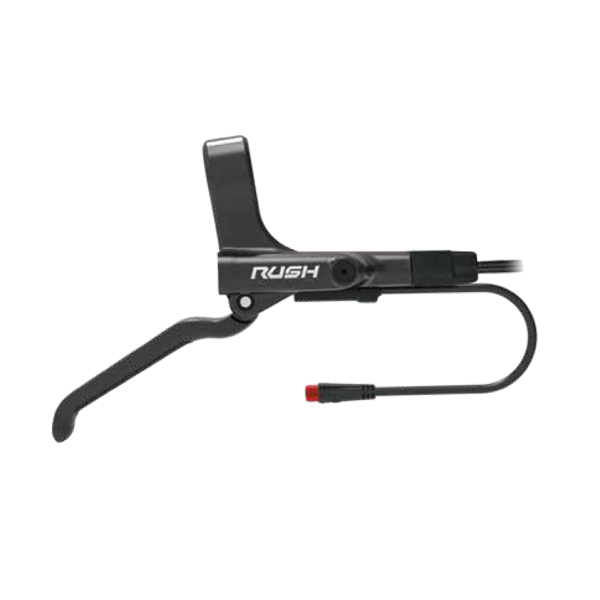

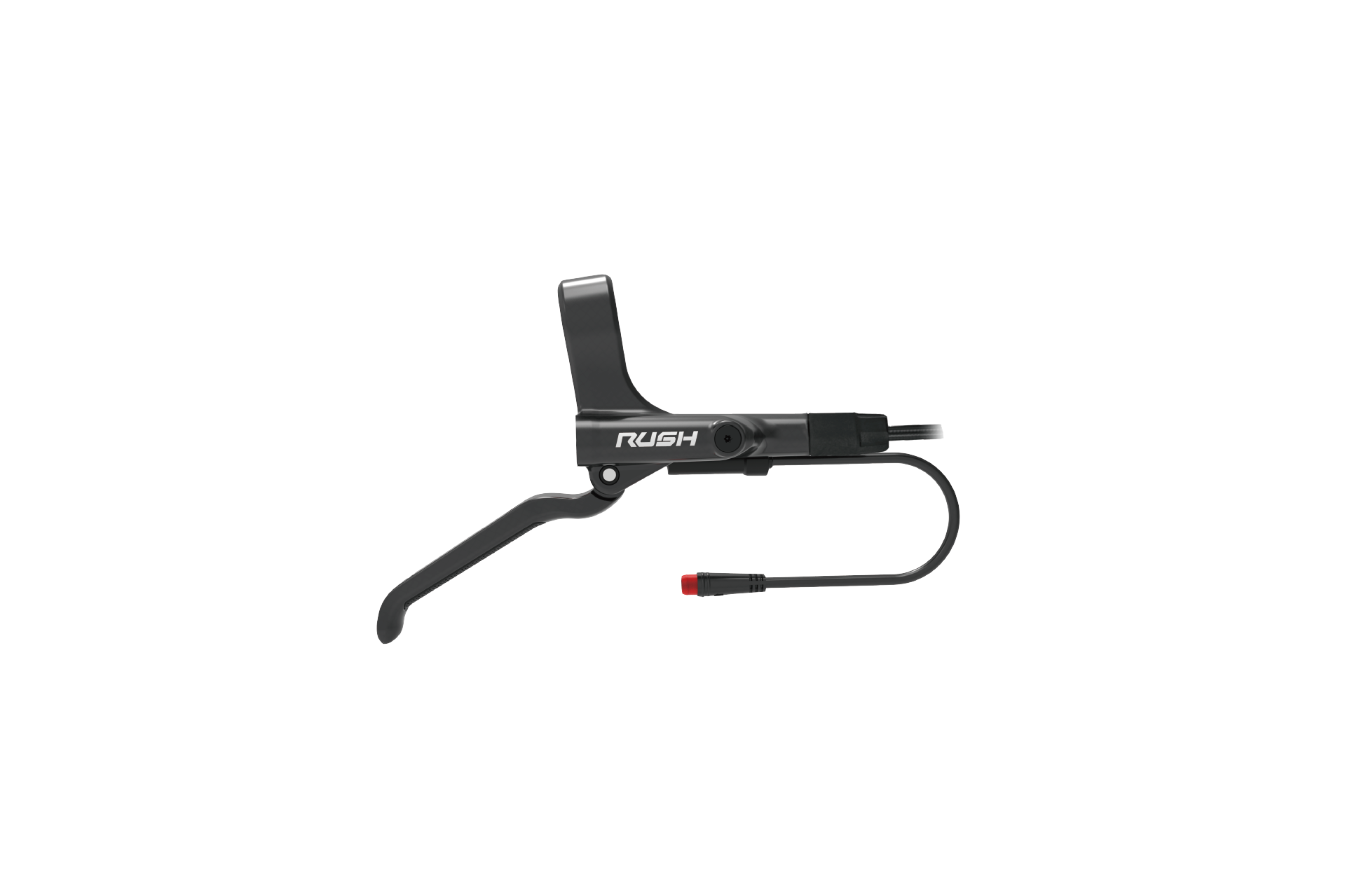

Lever
• Four fingers with rubber grip
• Reach adjustment

Weight
• Front: 305 g
• Rear: 327 g
• Weight excluded Rotor and Adapter
