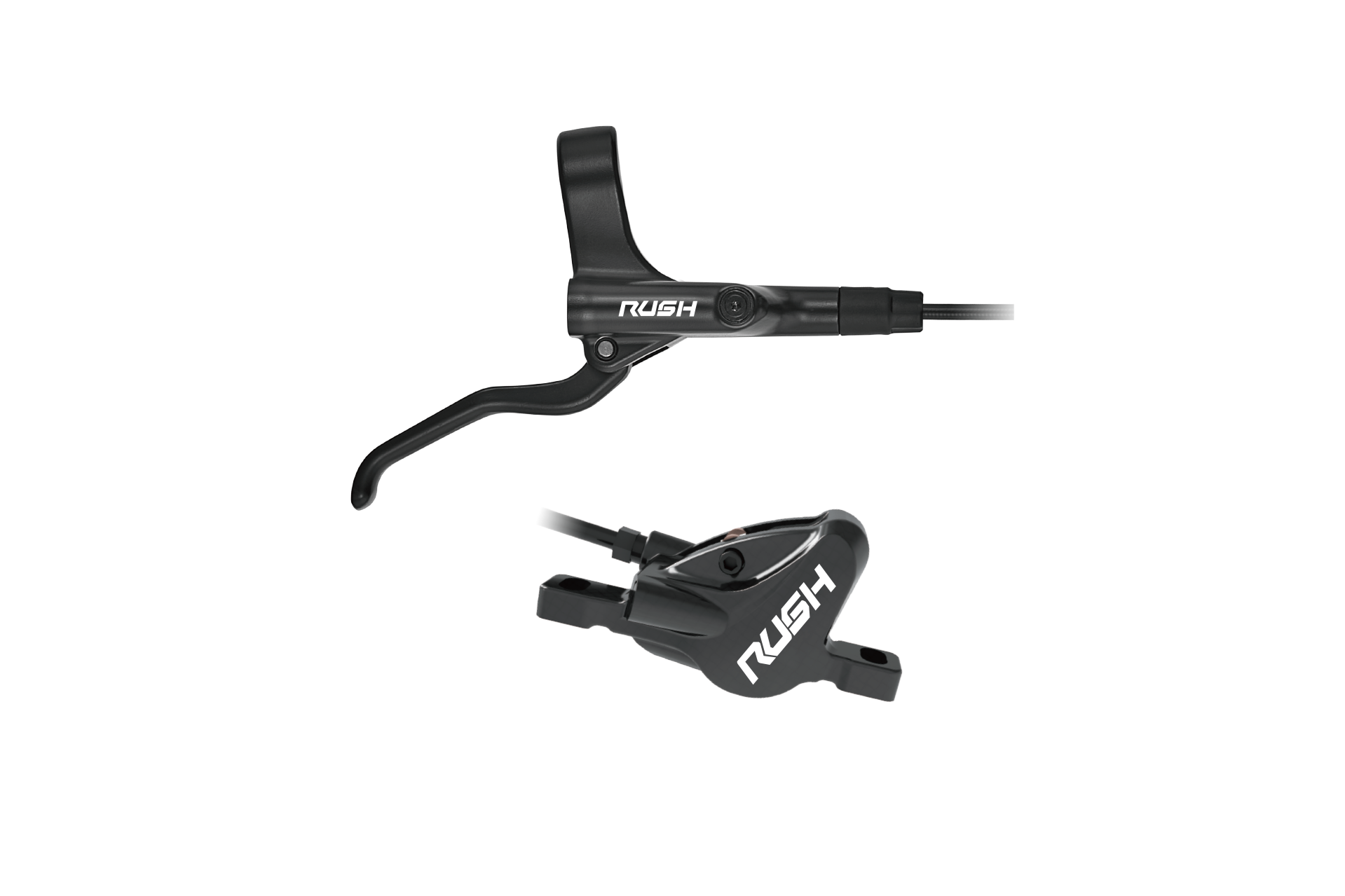

BH-M286

Key Features:

Application: Versatile 2-piston hydraulic system engineered for standard mountain bikes, cross-country trail riding, and hybrid/city commuter bikes.

E-Bike Compatibility: Optimized layout suitable for standard bicycles or e-bikes where a physical electronic motor cut-off switch is not required.

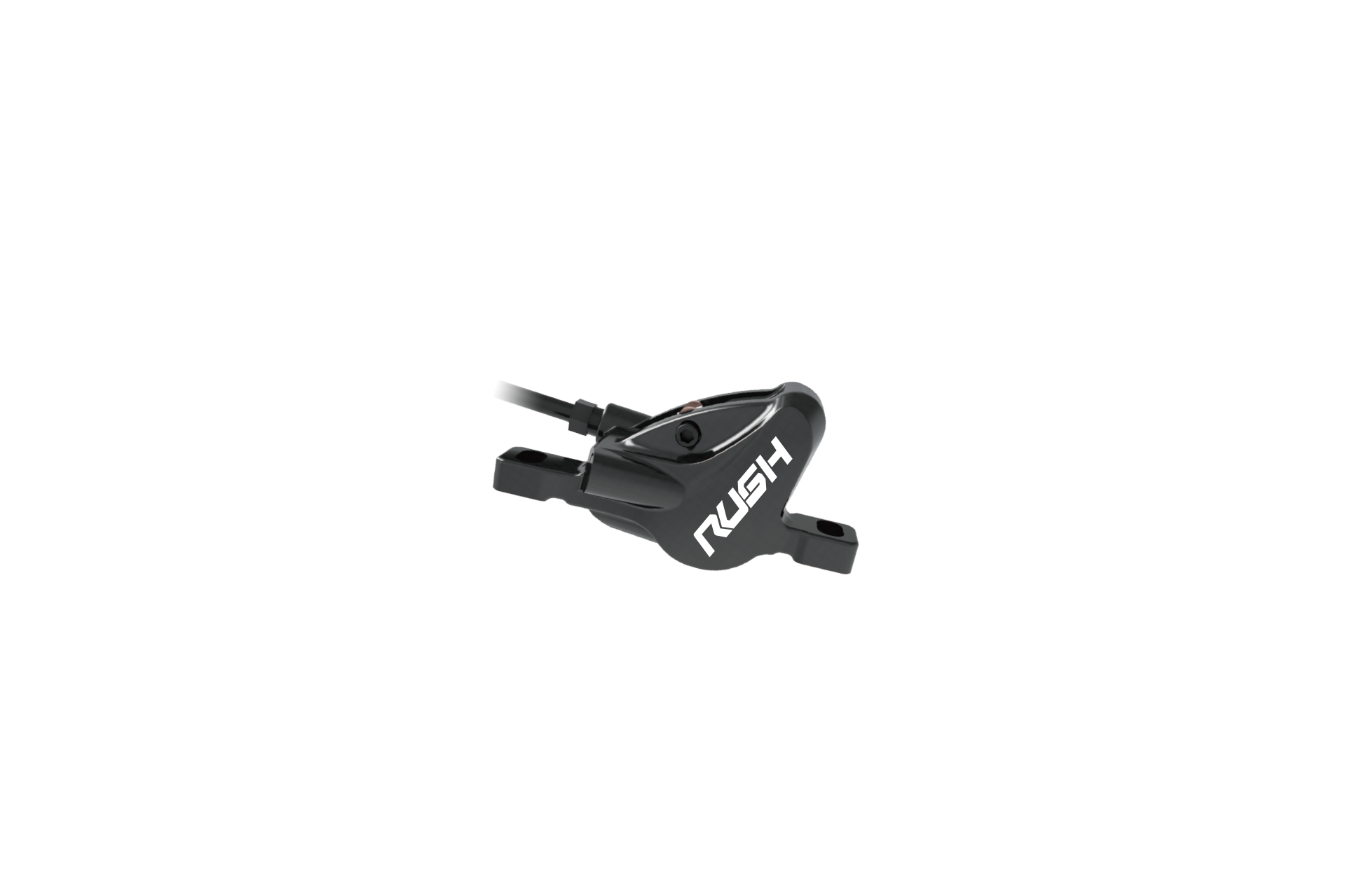

Caliper: Compact, small-profile 2-piston aluminum caliper housing designed for clean clearance across multiple frame and dropout styles.

Lever: Ergonomic, comfortable 3-finger lever blade built for smooth modulation and reliable utility braking.

Brake Pads: Supports both sintering metallic or resin pad configurations to balance high-heat performance or quiet organic stopping power.

Lightweight: Ultra-balanced configuration hitting approximately 295g for the front assembly and 317g for the rear assembly (excluding rotors and adapters).

Specifications:

System
• Open System
• One way bleeding
• One integrated pump, clean look
• Without power cut-off design for E-Bike

Rotor
• Center Lock: RT900 (Thickness=1.8mm)
• 6-Bolt type: RT553 (Thickness=1.8mm)
• 6-Bolt type:T23-180 (Thickness=2.3mm)

Caliper
• 2 Pistons
• Cold forged
• Small profile
• Black available

Pads
• Sintering Pads
• Compatible with Shimano Pads

Lever
• Three fingers with rubber grip
• Reach adjustment

Weight
• Front: 305 g
• Rear: 327 g
• Weight excluded Rotor and Adapter
