BH-M2700-EC4

Key Features:

Application: Engineered for heavy-duty electric cargo bikes, long-tail utility e-bikes, and entry-level e-mountain bikes (E-MTBs) requiring advanced stopping power.

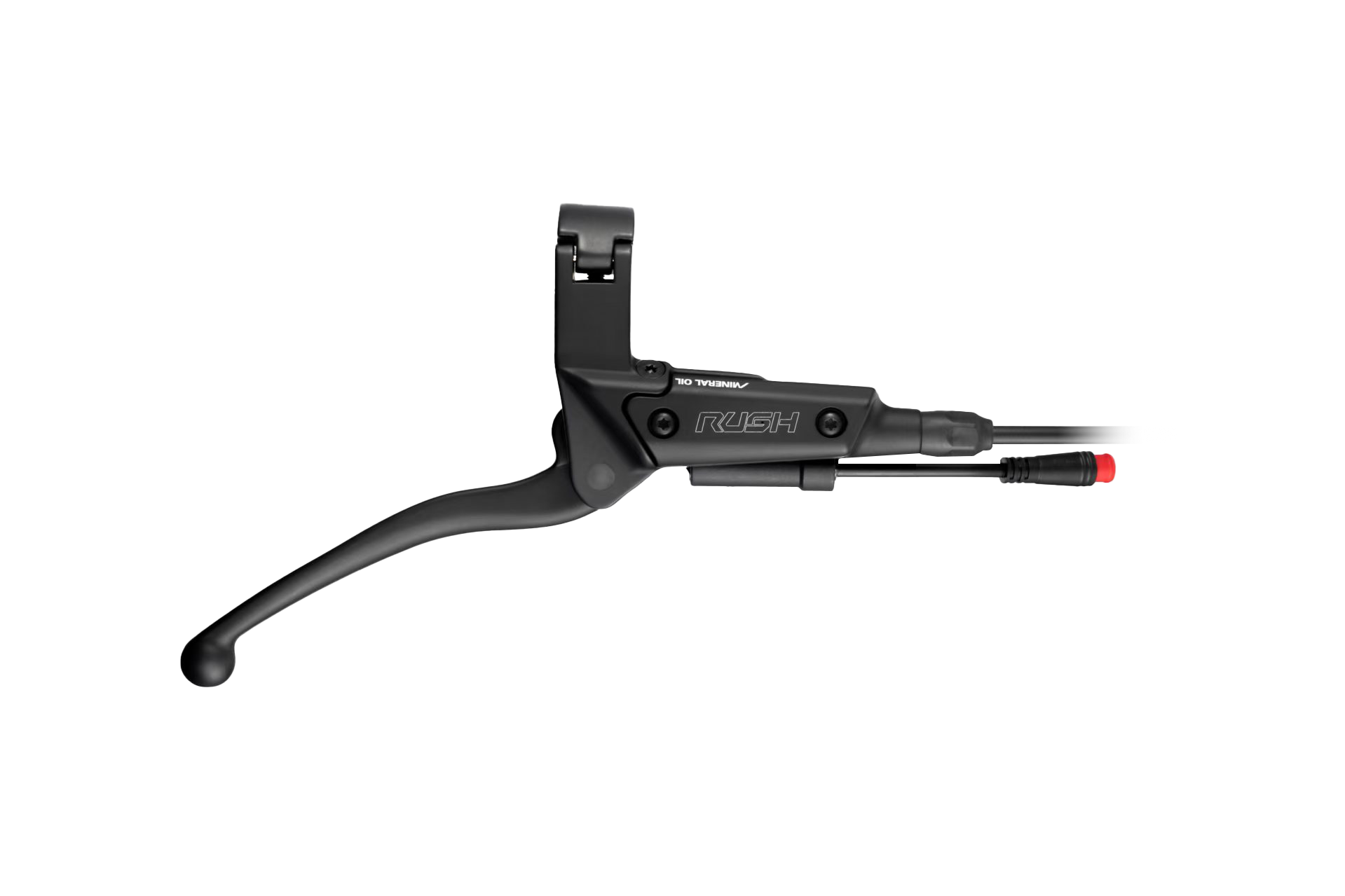

System Logic: Pairs the BH-M2700-E e-bike master cylinder lever with a high-performance Type-C4 heavy-duty caliper configuration.

Safety Integration: Equipped with the integrated inline electronic motor disconnect sensor to instantly halt motorized assistance during hard braking.

Caliper & Braking Power: Upgraded to a powerful 4-piston caliper design that delivers exceptional clamping force and superior thermal management under heavy vehicle and cargo weight loads.

Specifications:

System
• Open System
• One way bleeding
• Four pistons
• With power cut-off for E-Bike
• Oil window to detect oil volume

Rotor
• Center Lock: RT900 (Thickness=1.8mm)
• 6-Bolt type: RT553 (Thickness=1.8mm)
• 6-Bolt type:T23-180 (Thickness=2.3mm)

Caliper
• Cold forged 2-piece caliper
• Small profile
• Pads easy replacement from top side

Pads
• Sintering Pads with cooling fin
• Compatible with Shimano Pads

Lever
• Four fingers with ball-end for S-Pedelec
• Open clamp band design for easy installation

Weight
• Front: 335 g
• Rear: 371 g
• Weight excluded Rotor and Adapter
