BH-M2700-EC3

Key Features:

Application: Tailored for daily urban commuters, trekking e-bikes, and standard city electric bicycles.

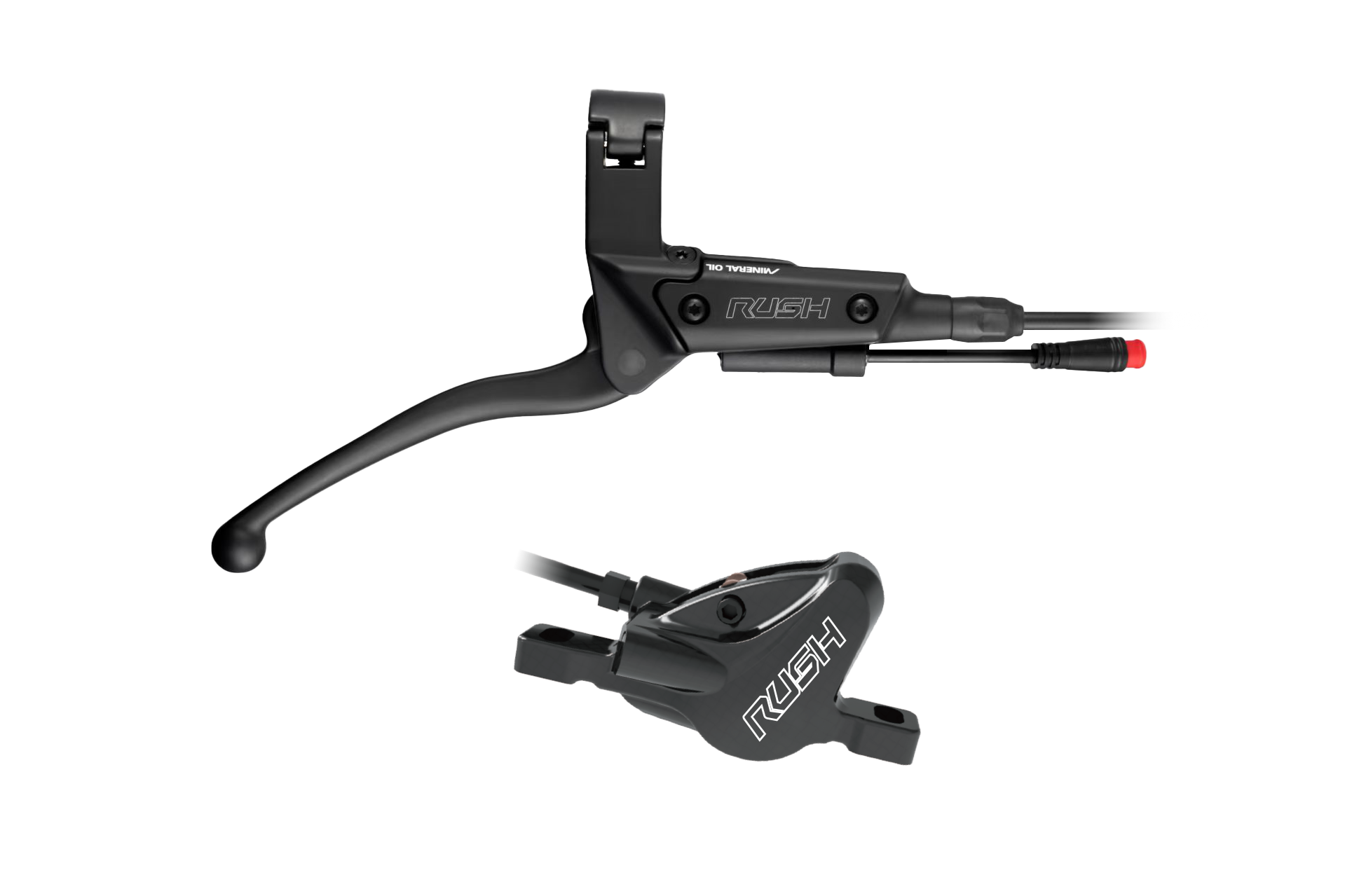

System Logic: Combines the standardized BH-M2700-E e-bike master cylinder lever with a Type-C3 utility caliper configuration.

Safety Integration: Features a built-in mechanical sensor wire providing an instantaneous electronic motor cut-off signal upon lever engagement.

Caliper & Modulation: Utilizes a lightweight, smooth-modulating 2-piston caliper setup optimized for predictable stopping power in stop-and-go city traffic.

Specifications:

System
• Open System
• One way bleeding
• Two pistons
• With power cut-off for E-Bike
• Oil window to detect oil volume

Rotor
• Center Lock: RT900 (Thickness=1.8mm)
• 6-Bolt type: RT553 (Thickness=1.8mm)
• 6-Bolt type:T23-180 (Thickness=2.3mm)

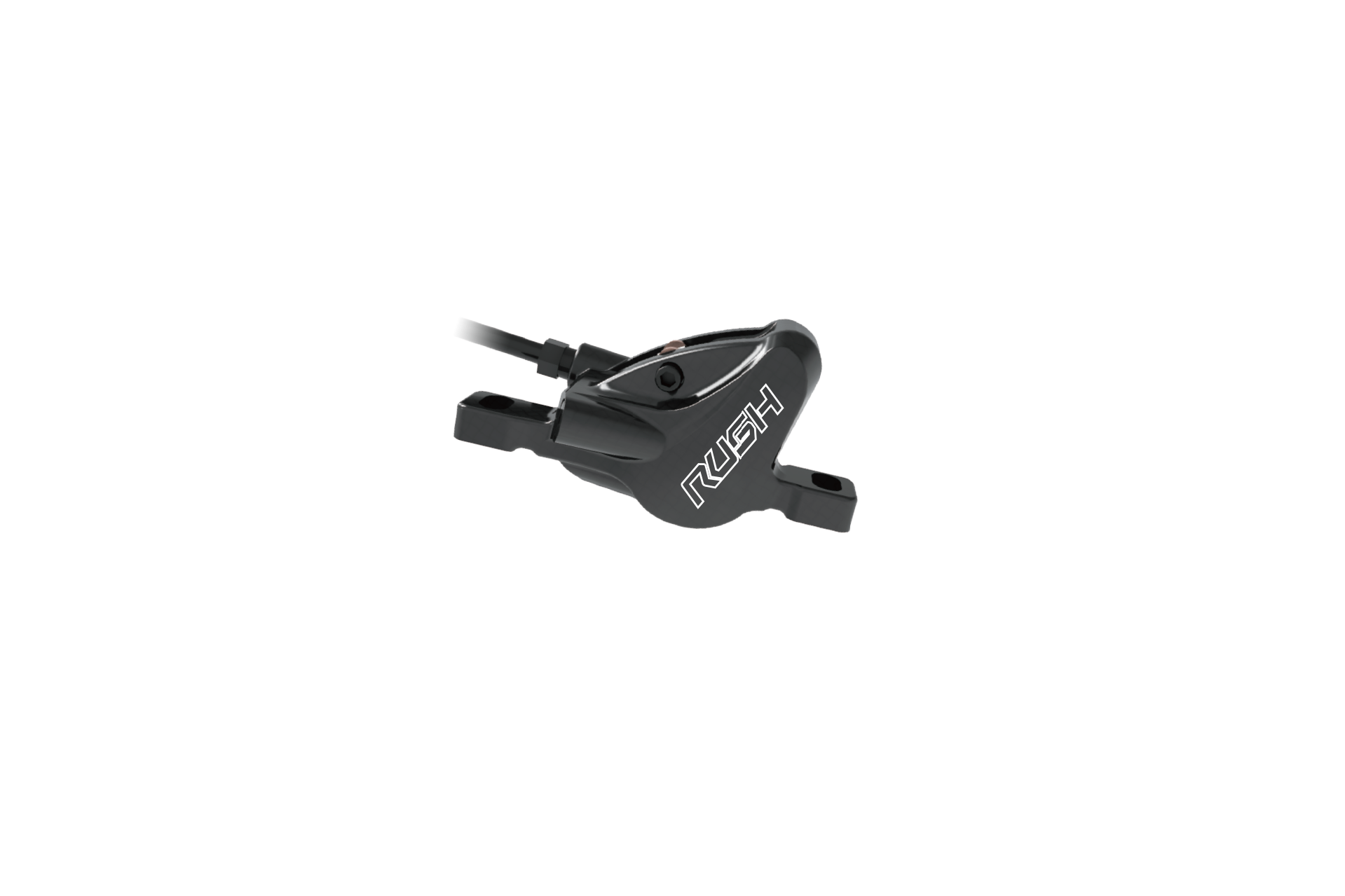

Caliper
• Cold forged 2-piece caliper
• Small profile
• Pads easy replacement from top side

Pads
• Sintering Pads with cooling fin
• Compatible with Shimano Pads

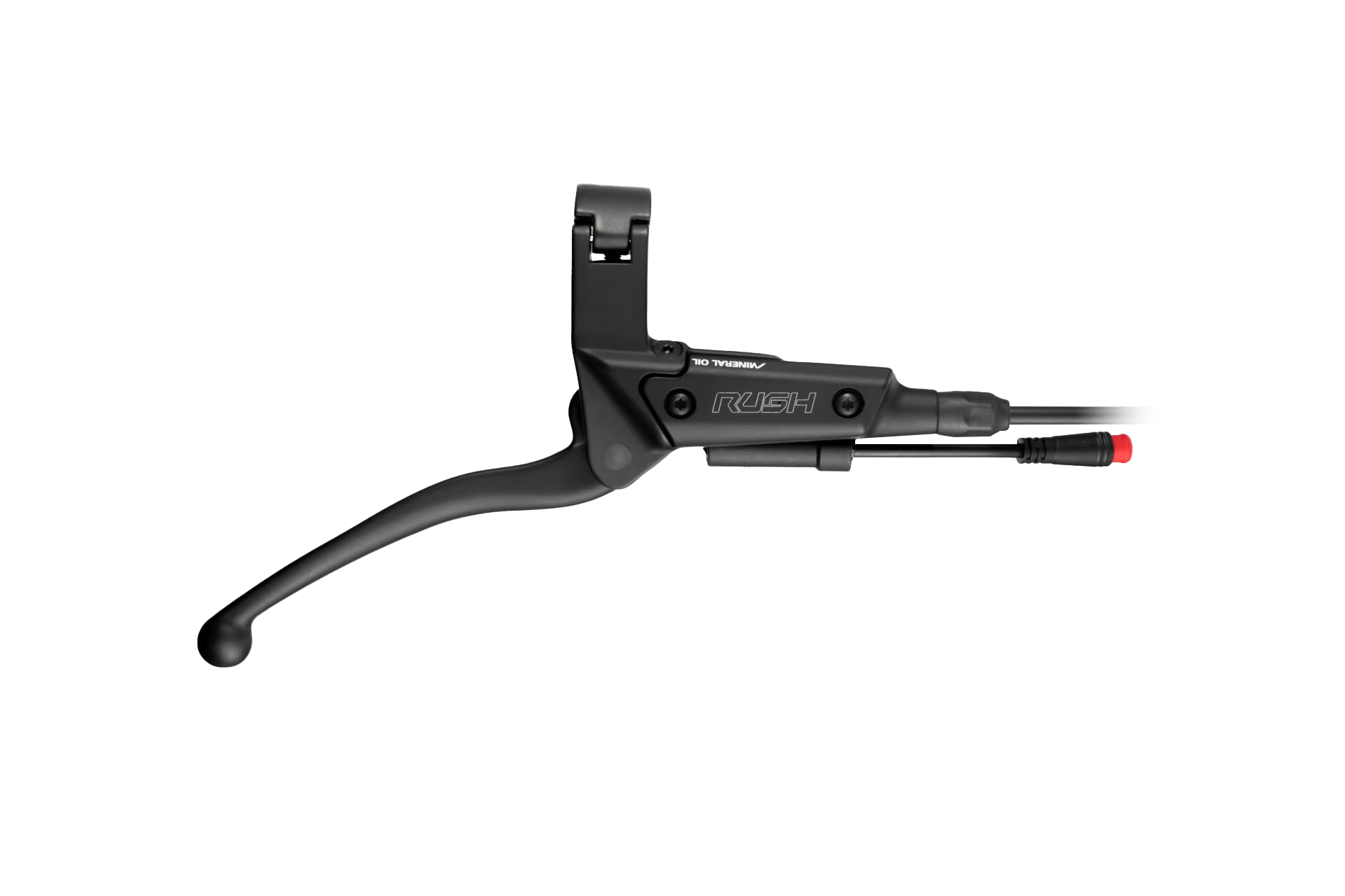

Lever
• Four fingers with ball-end for S-Pedelec
• Open clamp band design for easy installation

Weight
• Front: 317 g
• Rear: 354 g
• Weight excluded Rotor and Adapter
